Fluid handled: Dry Hydrogen
Flawrate : 260 Nm/hr
Operating Pressure: 200 bar (g)
Operating Temperature: 60 Deg C
Type ofelement : MF(HTNX) + SMF(HTNX) + AK
Model: C-EG-0015 HD
High Pressure Dryers
High Pressure Dryers

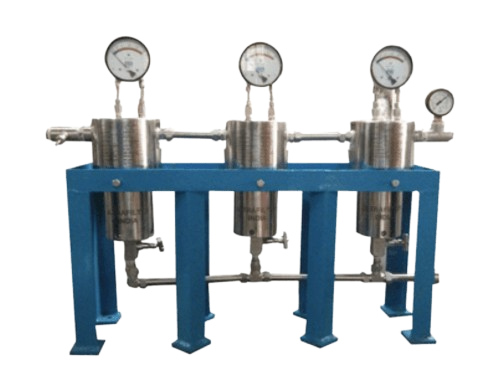

High Pressure Filters for Hydrogen gas filtration. This filtration system consists of three filters along with interconnecting piping and with support structure. Each Filter is provided with differential pressure indicators mounted on top using Swage ok fittings. Operating Pressure 250 bar. Filters
housing are made of forged SS316. Filters are used to remove oil contamination from hydrogen gas.
